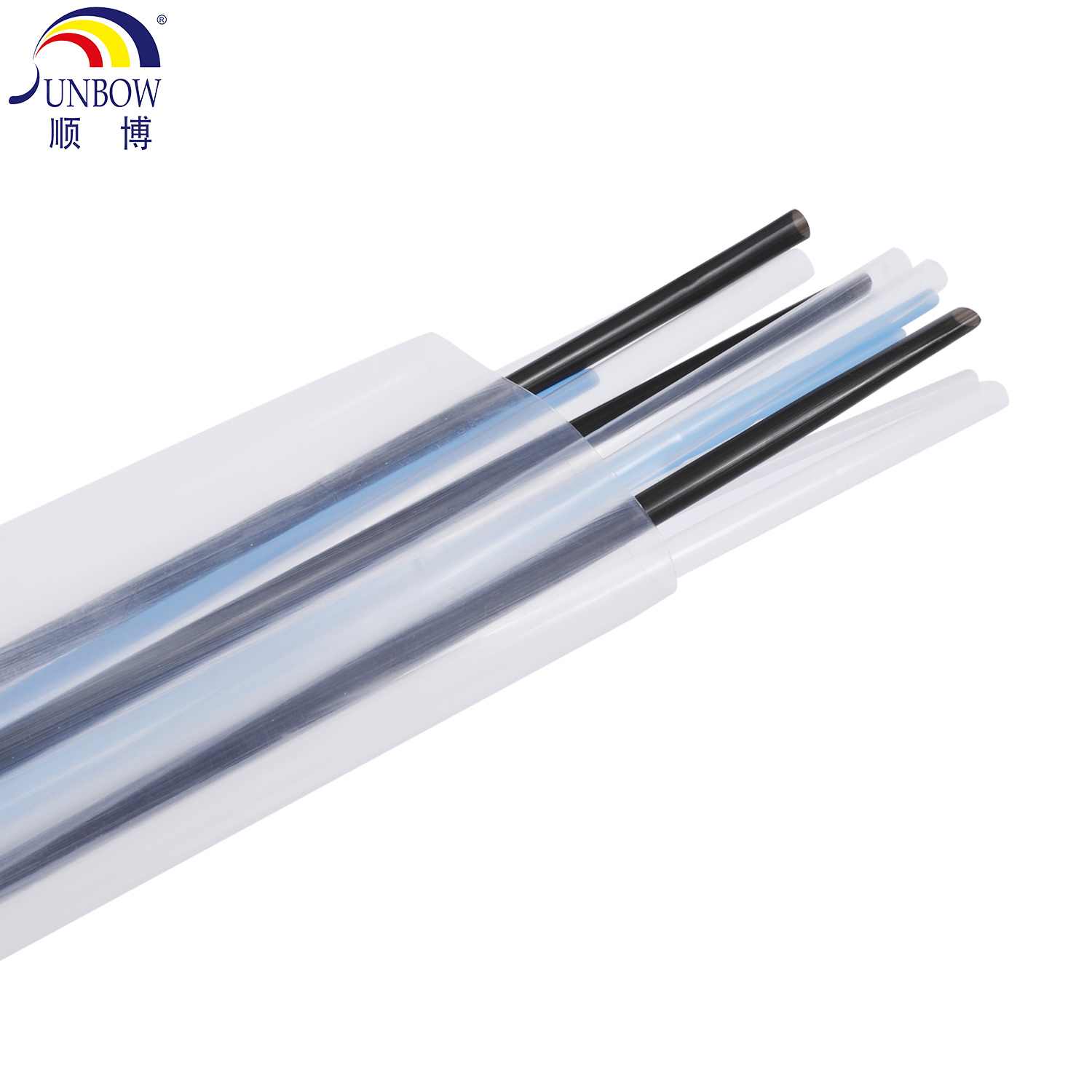

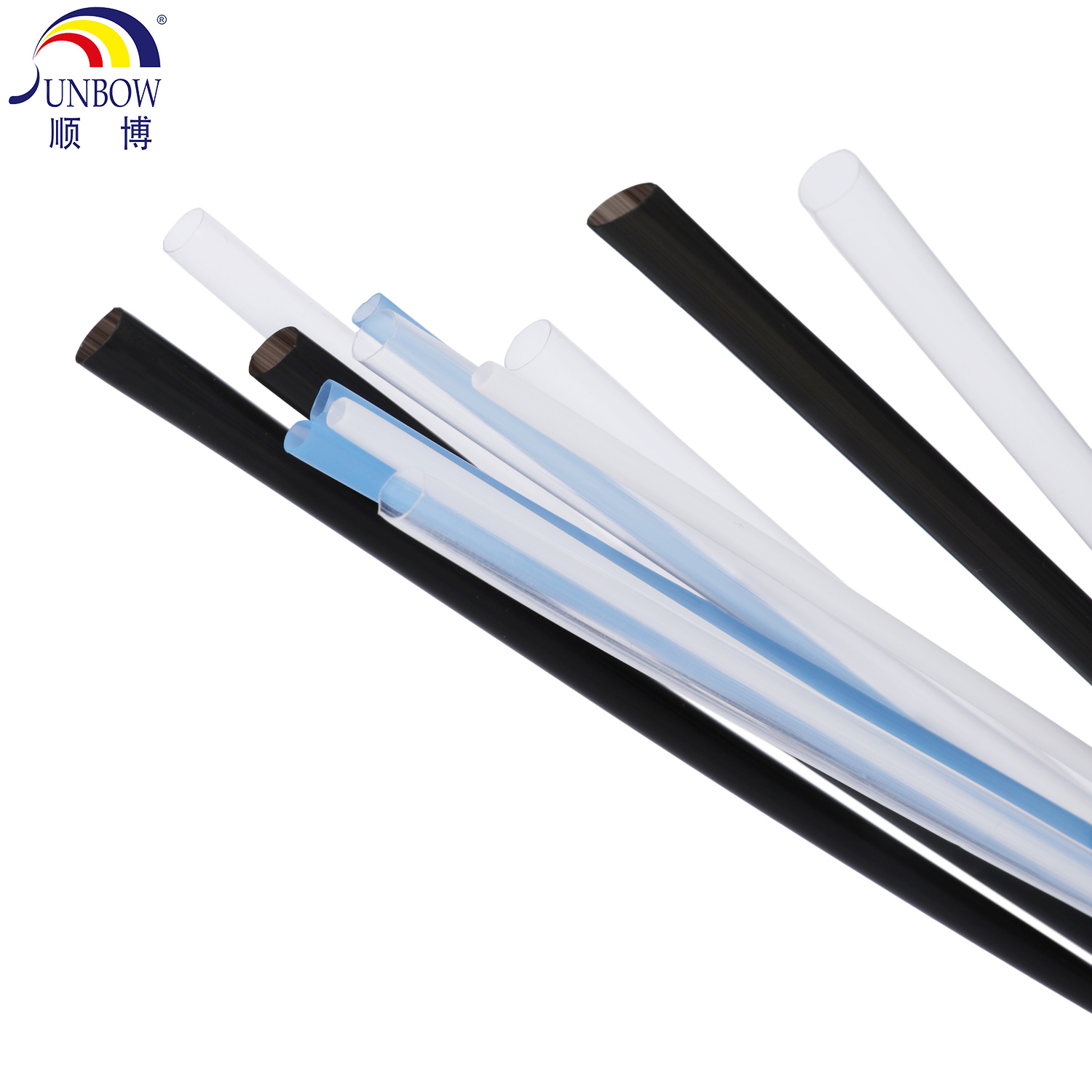

FEP Heat Shrinkable Tube
Model Number: SBD-FEP-HST
Working temperature: -80 ~ +200 ºC
Shrinkage temperature: +200 ~ +250 ºC
Shrink ratio: 1.3:1 / 1.6:1
Usage
Mainly used for insulation and sheath, electrical components, wires, cables under various frequencies; liquid crystal manufacturing apparatus, the single end emitting single core fiber tube, heat exchange,steam piping, high purity reagents conveying pipe, all kinds of corrosive medium conveying pipe.
Specifications
Color | Clear, Black etc |
Melting Temperature ºC | 260 ~ 270 |
Working Temperature ºC | -80 ~ 200 |
Shrinkage Temperature ºC | 200 ~ 250 |
Integrated Index g/10min4- | 12 |
Proportion | 2.15 |
Effect of Corrosion on Copper | No Corrosion |
Antibacterial Property, Corrosion Resistance | Good |
Toughness | Good |
Tensile Strength MPA (KG f/cm) | ＞21.0 |
The Decomposition Temperature ºC | 360 |
Flame Retardant | VW-1 |
Resistance | Abrasion Resistance, Acid and Alkali Corrosion, Anti Dipping, Anti Fungal, Anti Corona Discharge, Industrial Solvent, Resistance to External Mechanical Damage |
Environmental Protection | On the Human Body and No Harm to the Environment |
